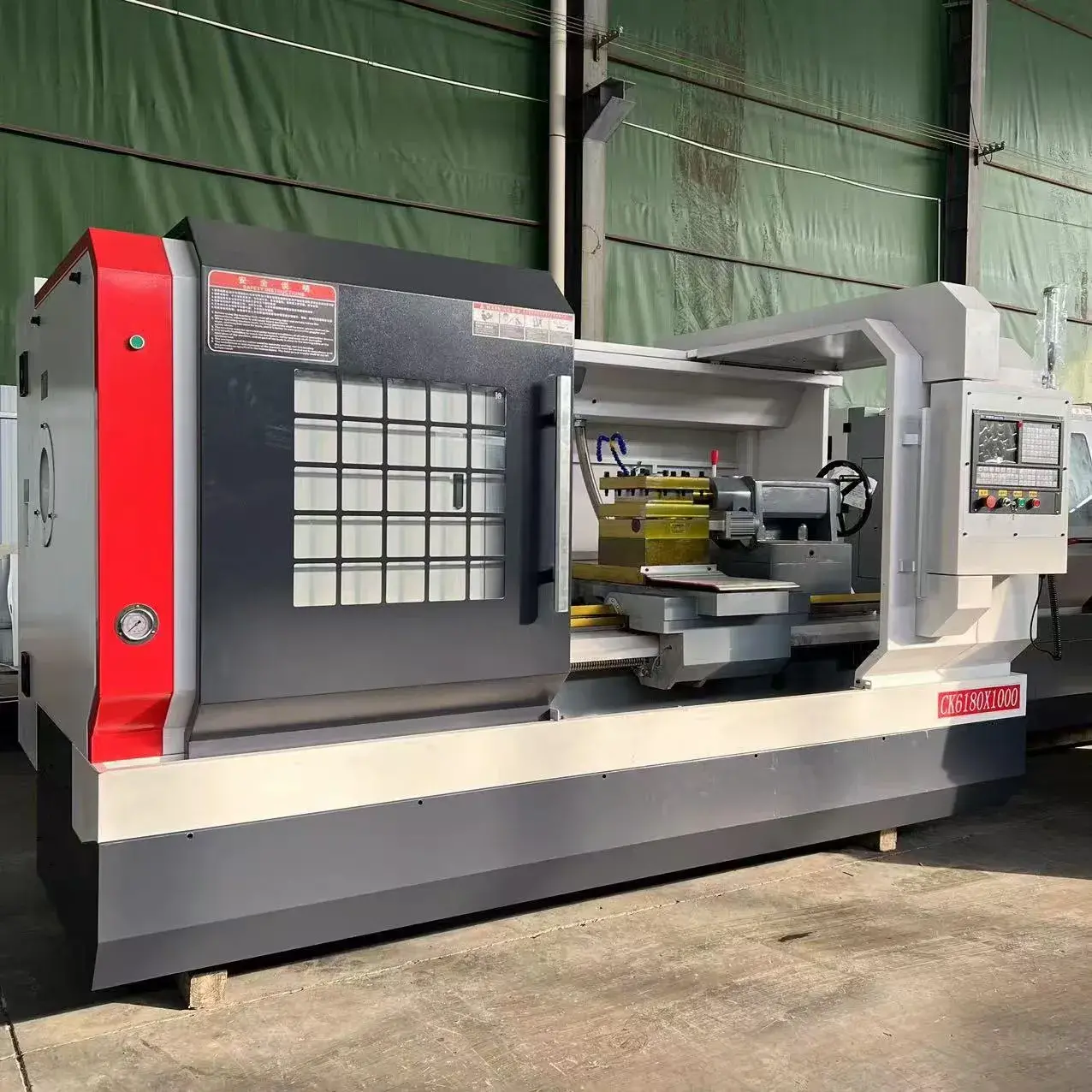

parameters |
| Scope of work |
Maximum swivelling diameter on the bed |
800mm
|
| Maximum swivelling diameter through the slide |
480 mm
|
| Maximum Top Distance |
1500/2000/3000 mm
|
| X-axis (lateral) maximum travel |
420 mm
|
| Z-axis (lateral) maximum travel |
1500/2000/3000 mm
|
| Guide width |
600mm
|
| X/Z Ball Screw Screws |
3208/6310 |
| whip |
X direction 6m/min Z direction 8m/min |
| Machining precision |
IT7-IT8 |
| principal axis (in mechanics, optics, botany etc) |
Spindle head model |
C-11 |
| Spindle bore taper / spindle through-hole |
Metric 1:20/¢105mm
|
| Spindle speed |
30-835 |
| Chuck size |
Four-jaw chuck ¢630mm
|
| accurate |
position accuracy |
X-axis (lateral) ≤ 0.015 mm |
| Z-axis (lateral) ≤0.02 mm |
| Repeat Positioning Accuracy |
X-axis (lateral) ≤ 0.01 mm |
| Z-axis (lateral) ≤0.015 mm |
| scabbard |
Form/quadrilateral tool shank specification |
Four-station tool holder 280*280/tool square 32X32mm |
| tailstock |
Tailstock sleeve diameter/stroke |
120 mm /250 mm |
| Taper hole for tailstock centre |
MT6# |
| electrical machinery |
Main motor power |
11KW motor |
| X/Z axis motor power |
10/18NM |
| Machine weight/exterior dimensions (1.5 metre machine) |
5300KG/3650X2050X1850mm |
