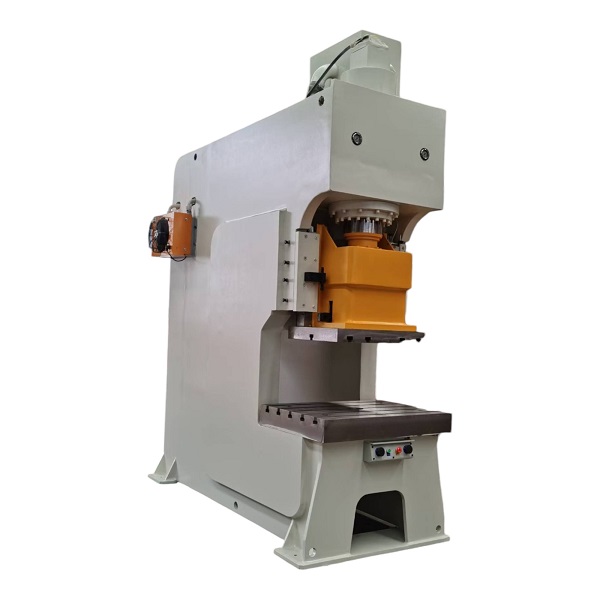

Y21 Series Hydraulic Rapid Punching Machine

Y21 Series Hydraulic Rapid Punching Machine -
  • Y21 Series Hydraulic Rapid Punching Machine -
  • Y21 Series Hydraulic Rapid Punching Machine -

Short Description:


Download as PDF

Product Detail

Technical Parameters of Y21 Series Hydraulic High-Speed Punching Machines (2024 Edition)
No.  Item Unit Model
1 nominal force KN 250 400 630 800 1000 1250 1600 2000 2500 3150 4000
2 The maximum pressure of the hydraulic system MPa 21 21 21 21 22 22 22 25 25 25 25
3 maximum stroke of the slide block mm 150 150 200 200 200 260 260 260 260 300 300
4 The working frequency of the slide block Quick descent mm/s 270 270 270 270 270 260 260 260 250 250 240
Working feed mm/s 45595 45595 45595 15-40 45595 45595 45595 45590 45590 45524 45524
Return stroke mm/s 150 250 270 230 200 250 220 200 220 200 150
5 Maximum opening height mm 300 360 400 430 460 500 500 530 560 600 600
6 Stroke adjustment amount mm CV CV CV CV CV CV CV CV CV CV CV
7 Throat depth mm 200 220 250 270 285 300 320 335 350 370 380
8 The height from the workbench to the ground mm 700 700 730 750 750 800 900 900 900 990 1000
9 The dimensions of the bottom surface of the slide block left and right mm 300 360 400 460 480 560 600 660 660 700 700
front and back mm 200 250 300 330 360 400 450 480 480 500 560
die hole mm 40 40 50 50 50 60 60 60 65 65 65
10 Dimensions of the workbench backing plate left and right mm 600 700 800 900 960 1000 1100 1200 1260 1300 1400
front and back mm 360 400 460 500 530 560 600 630 660 700 700
bore diameter mm 100 120 160 160 160 160 200 200 200 200 200
thickness mm 60 70 80 90 100 120 140 150
11 Machine outline dimensions left and right mm 900 1000 1070 1150 1200 1250 1400 1450 1550 1700 1800
front and back mm 1050 1250 1450 1700 1750 1900 2100 2250 2300 2500 2700
height mm 2200 2400 2650 2900 3000 3250 3500 3600 3800 4100 4300
12 Motor power KW 4 5.5 7.5 11 11 15 18.5 22 22 30 30
1.8T 2.5T 3.8T 4.6T 6T 7T 10T 13T 16T 21T 27T
The hydraulic oil required by the equipment 120kg 170kg 250kg 400kg 450kg 580kg 700kg 850kg
